ISO-Certified Marine Pilot Ladder

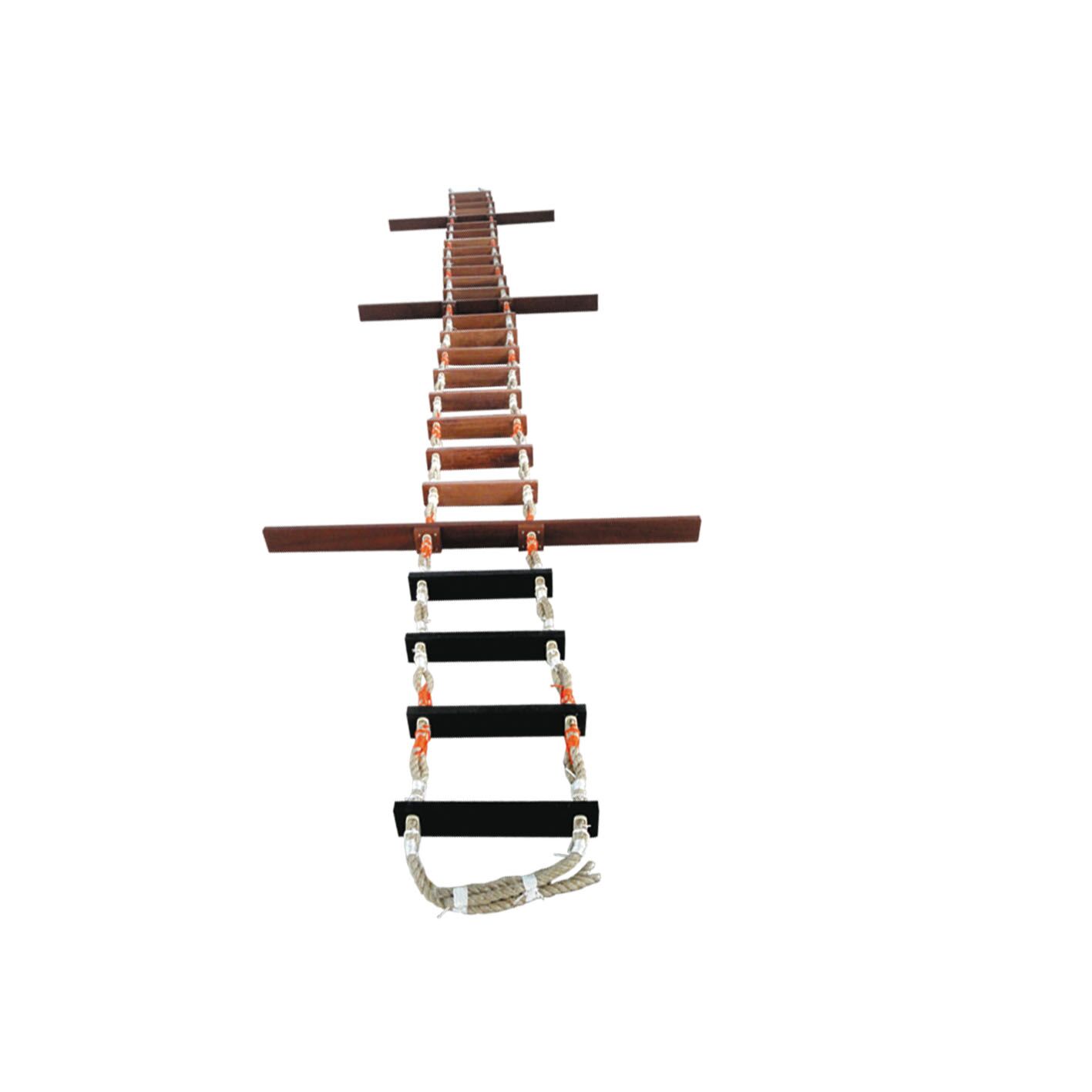

A pilot ladder is a highly specialized form of a rope ladder, typically used onboard cargo vessels for the purposes of embarking and disembarking pilots.
- The pilot ladder is assembled with two side ropes on each side continuous from the top of the ladder to the bottom.
- Each step is supported by each side ropes.
- The four lowest steps are rubber steps with steel frame inside.
- The remaining steps are made of hard wood.
- The size of steps except spreader steps is 525*115*26mm, with 425mm between the side ropes.
- The size of spreader steps is 1800*115*26mm
Each side has a breaking strength of at least 24Kn.
Additional information
| Model | FZST/P |
|---|---|
| Dimension | Pedal material: Lauan wood |
| Bottom | Rubber step |
| Approval | MED |
Product Details:
ISO-Certified Marine Pilot Ladder for Safe Boarding – Durable and Anti-Slip Design
Our Pilot Ladder is crafted from the highest quality materials and adheres to strict international safety standards. The ladder features sturdy hardwood steps with non-slip treads and strong manila ropes for secure attachment to ships. It is available in various lengths to accommodate different vessel heights , ensuring a perfect fit for any maritime operation.
To meet international safety regulations, our Pilot Ladder undergoes rigorous testing and inspection, including compliance with SOLAS (Safety of Life at Sea) and IMO (International Maritime Organization) guidelines. We take great pride in offering a product that exceeds the highest safety standards, providing peace of mind for both pilots and ship operators.
Our ladder is not only designed for safety, but also for durability and longevity. It is resistant to salt water, UV rays, and extreme temperatures, making it ideal for use in harsh marine environment.
Whether you are a ship operator or a pilot, our Pilot Ladder is an essential tool that you can trust for safe and reliable transfer between ships. Choose the Pilot Ladder for a product that meets the highest standards in safety, durability, and quality.
The Pilot Ladder is a critical tool for the safe transfer of pilots to and from ships. In many ports around the world, pilots are required to board ships to assist with navigating through narrow channels and other tricky navigation situations. To ensure that this process is as safe as possible, pilot ladders are designed to provide a stable and secure platform for pilots to climb up or down.
The design of the Pilot Ladder is highly regulated by international organizations such as the International Maritime Organization (IMO) and the International Labour Organization (ILO) to ensure that it meets strict safety standards. For example, the ladder must be securely attached to the ship, with a maximum angle of inclination of 60 degrees, and the bottom step must be at least 1.5 meters above the waterline to prevent waves from interfering with the transfer process.
At the top of the ladder, a platform is often provided to allow the pilot to step onto the deck of the ship more easily. Additionally, some ladders are equipped with safety cages or nets to provide an extra layer of protection against falls.
The Pilot Ladder is typically made from durable materials such as hardwood or aluminum to withstand the harsh marine environment. The steps are usually coated with a non-slip material to provide additional safety and stability for the pilot.
Overall, the Pilot Ladder is an essential tool for safe and efficient transfer of pilots to and from ships. With its sturdy construction, adherence to strict safety standards, and durability, it is the top choice for maritime professionals around the world.
